Home / Play Systems / The Cube / Cube Series 003

SAP-CUBE SERIES 003

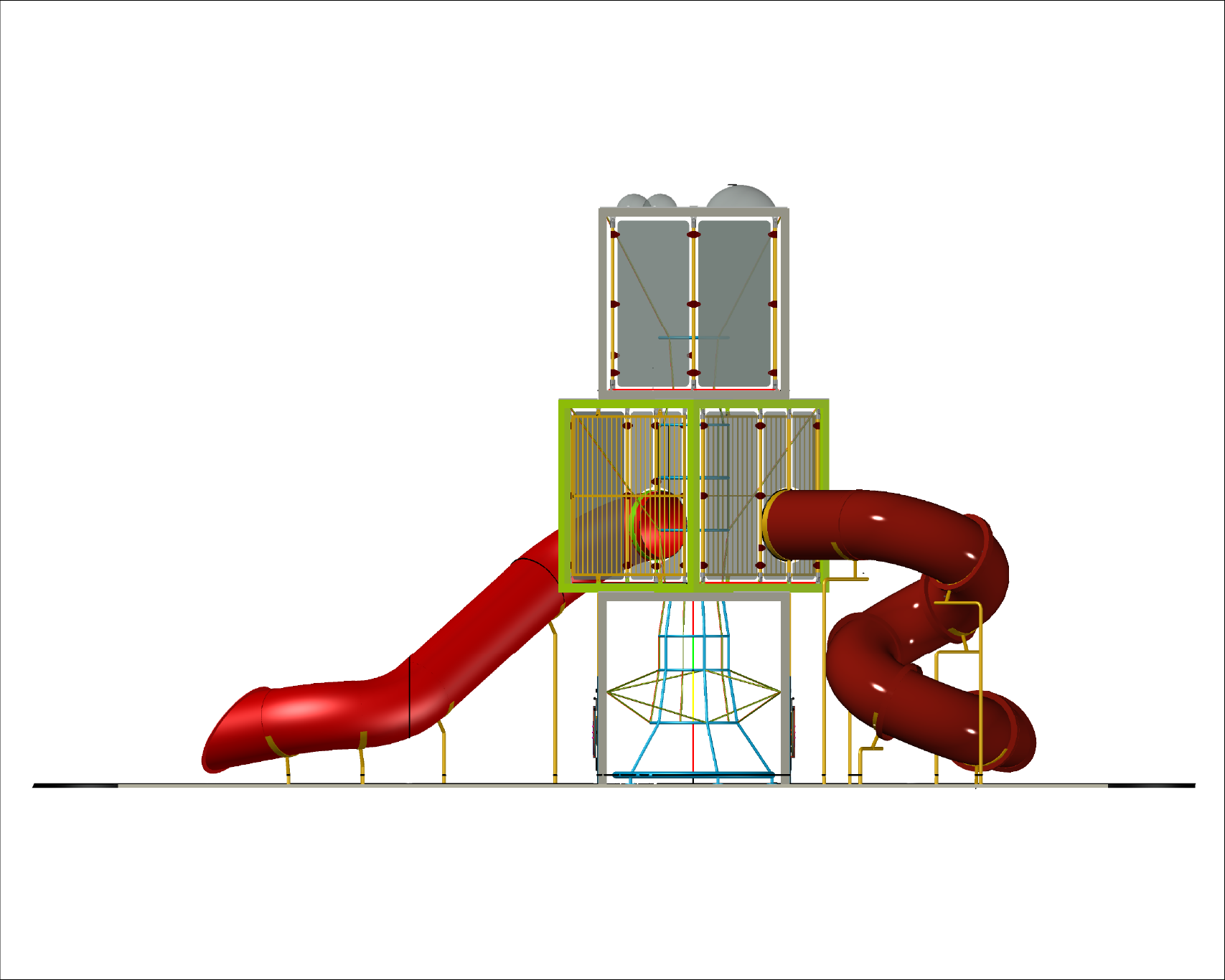

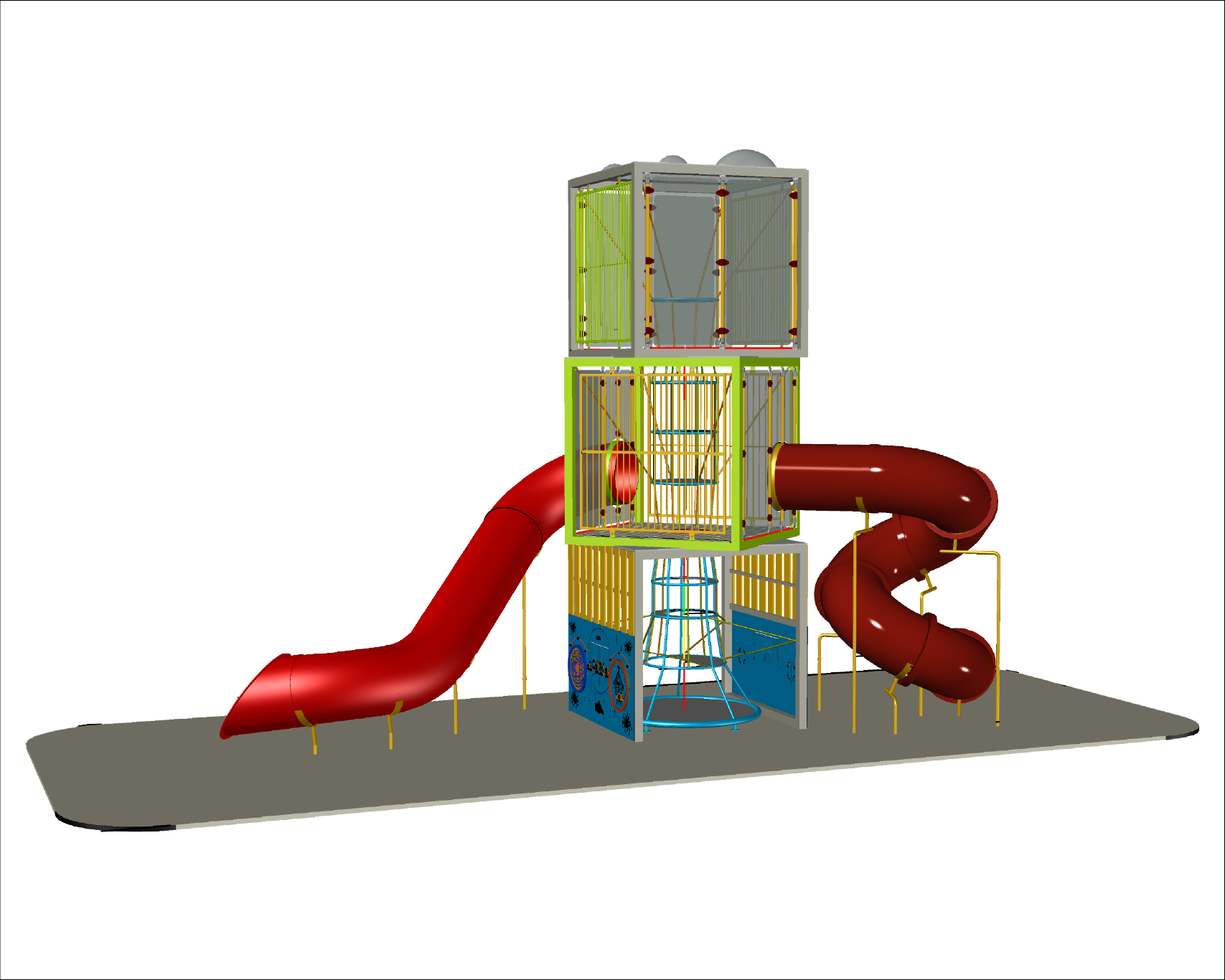

Cube Series 003

Contained Outdoor Systems Cube Range

Ages: 5 & up
Unit size: 5600mm X 3500mm X 4700mm HIGH

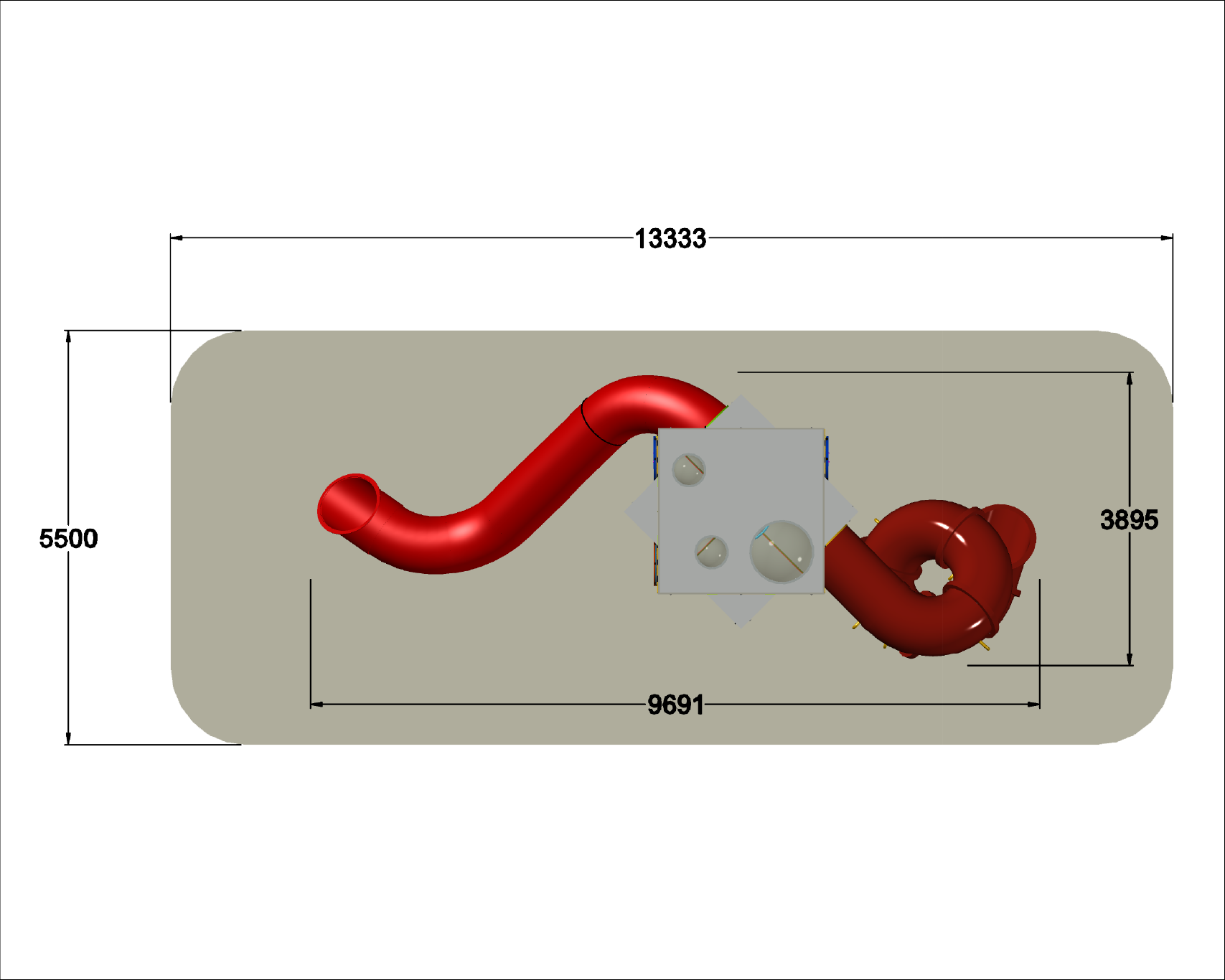

Safe area: 7600mm X 5500mm
Code: SAP-CUBE SERIES 003

Features

3 – Cubes
1 – Spiral slide
1 – Long slide
1 – Ring Vortex Climber
4 – Interactive games
3 – Spatial nets

Materials

Frame

Structural steel, primed and painted with urethane based paint (Galvanizing optional)

Side Panels

Wood Particle Composite panels
6mm CNC routed Polycarbonate panels with UV printed artwork
CNC routed 15mm multi layers High Density Polyethylene panels with interactive games
Steel grid ventilation panels

Flooring

13mm composite reinforced conveyor climber
Wood Particle Composite deck

Roof

CNC routed 15mm multi layers High Density Polyethylene panels

Space Net

Mark one galvanized 6mm chain
Urethane extrusion hose for the chains
Polypropylene cover caps

Slide

LLDPE UV stabilized slide

Paint

5+ Colours may vary depending on stock availability

Site requirements

Levelled concrete base
Impact absorbing surface or shock pad must be installed after equipment
100mm thick @25mpa concrete slab

Interested in this?

Send us the site details and age groups and the team will come back with a recommendation and a quote.

Enquire on WhatsApp Email us

Download the The Cube brochure
